2.4G ulawulo olukude

Ulawulo olukude lwe-2.4G luxhaphake kakhulu lolawulo lwamaza kanomathotholo kwimarike.

I-2.4GHz yifrikhwensi yoluntu, malunga ne-2400MHz.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

ividiyo

Ulawulo olukude lwe-2.4G luxhaphake kakhulu lolawulo lwamaza kanomathotholo kwimarike.

I-2.4GHz yifrikhwensi yoluntu, malunga ne-2400MHz.

Kuba i-bandwidth ye-2.4GHz frequency band ibanzi kakhulu kune-72MHz, 40MHz, 35MHz (ibhendi ye-72MHz iqulethe kuphela amanqaku angama-50, i-2.4GHz inokuqulatha amanqaku angama-400), amathuba okuphinda-phinda angaphantsi kakhulu kunolawo abalawuli bamaza emveli abakude.I-GHz electromagnetic wave inomgca olungileyo, i-eriyali emfutshane, kwaye kulula ukuyisebenzisa, ngoko iyathandwa ngabanye abathanda inqwelomoya.Ulawulo olukude lwe-2.4GHz lunamanqaku amaninzi asebenzisekayo.Ukongeza, i-2.4GHz i-radio wave inamandla okuphazamiseka, kwaye akukho lula ukuphulukana nolawulo xa kukho imiqobo.

Ulawulo olukude lwe-2.4G lusetyenziswa kakhulu kwinkalo yonxibelelwano.Kukungenwa okubuthathaka kwemiqobo ~~Kuba iliza elifutshane.

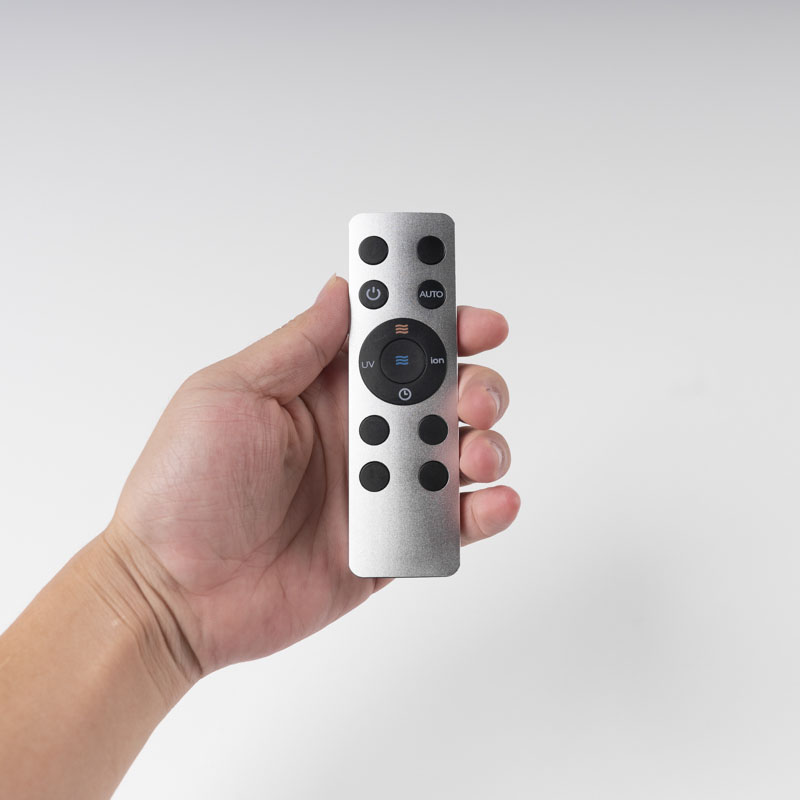

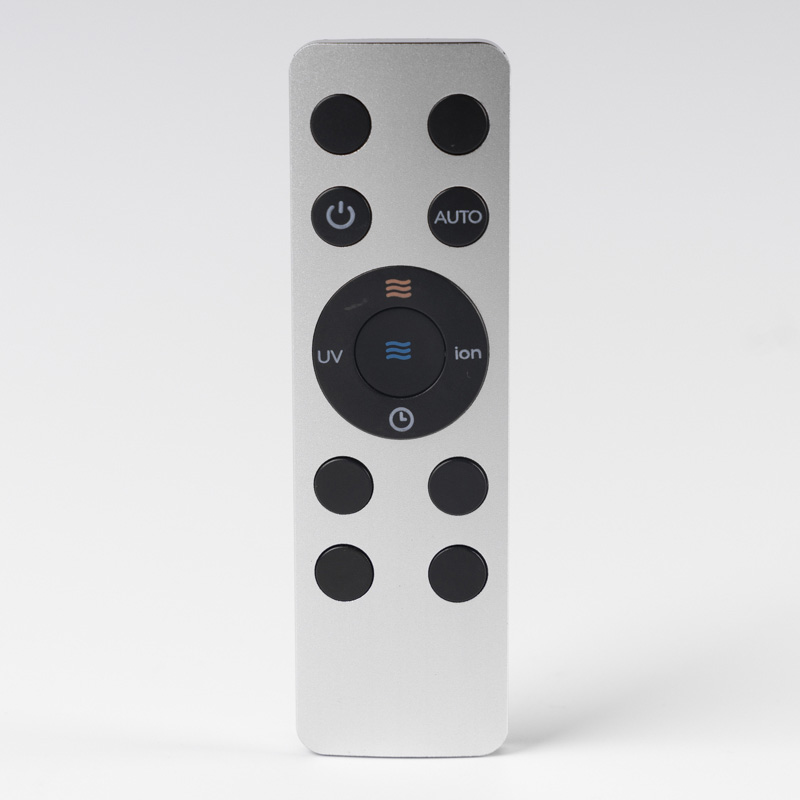

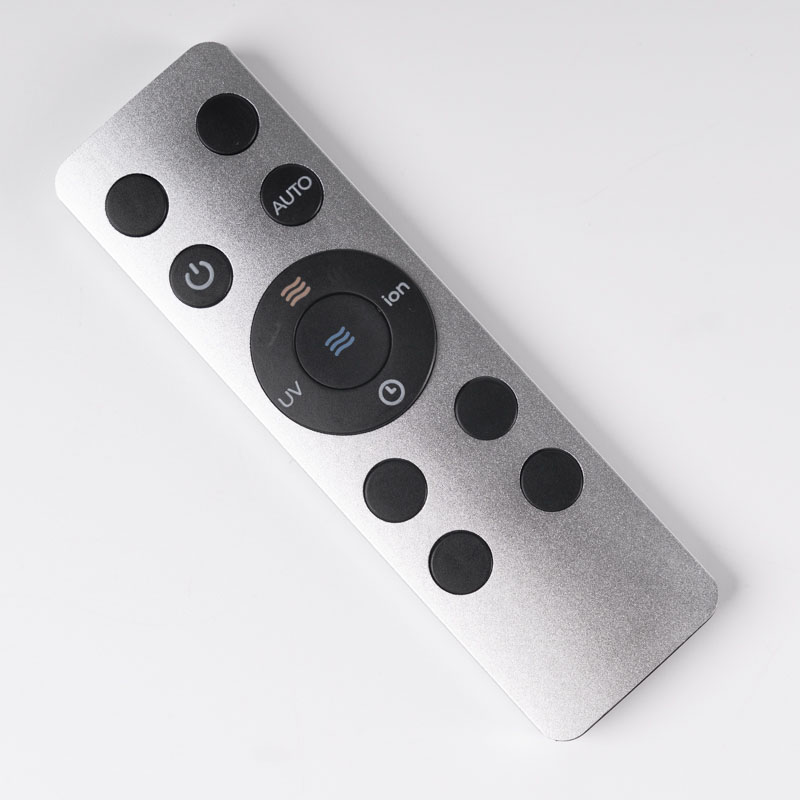

I-DT-013AL isebenzisa igobolondo le-aluminium kunye ne-chip ekumgangatho ophezulu ukugqiba umsebenzi wokuhambisa umqondiso we-2.4G.

INGCACISO YEMVELISO
Inombolo yoMfanekiso	DT-013AL
Imveliso	9-izitshixo RF elawulwa kude nge USB HID umamkeli
RF	2.4 GHz ISM ibhendi.2.4 GHz ISMIbhendi yokuphindaphinda)

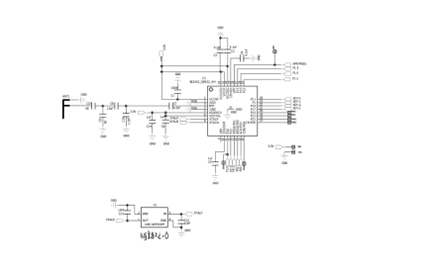

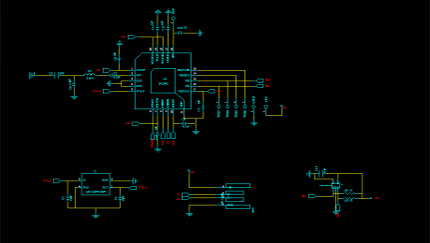

PCB	EP0050406 Umzobo wesicwangciso:BK2452_MODULE_V2
Ugqithiso	> 10 m
Ubungakanani	120 x36 x 9 mm
Ibhetri	CR2032
Imali	<10mA
Ukubhanqa	Ukubhanqa: Ngokungagqibekanga, ulawulo olukude kufuneka ludityaniswe ne-USB HID umamkeli kwangaphambili.Cinezela ezi zitshixo zimbini ngexesha elinye imizuzwana emi-3, ulawulo olukude lungena kwisimo sokubhanqa.
ZIFIHLILE	Ngokungagqibekanga, ulawulo olukude kufuneka luvele kwi-Android USB host njengegama lesixhobo sebhodi yezitshixo
I-ID yosetyenziso lwe-ID	Xa iqhosha lokulawula kude licinezelwe, ukuhanjiswa kwe-ID yokusetyenziswa kwe-HID kufuneka kulandele itafile yenkcazo kwiphepha lesi-2.
Yila	Onke amaqhosha kufuneka abe mnyama anesilika emhlophe yesikrini.
	Amaqhosha kufuneka amakishwe ngokwemizobo ekwi-specification sheet.
	Ilogo: Ulawulo olukude kufuneka lubandakanye i-LOGO ngokwemizobo ekwiphepha lenkcazo.
	Ngokomfanekiso, umbala wolawulo olukude ngumbala ophambili we-aluminium alloy.


UGcino lweMveliso kunye neNdawo yokuSebenza-20℃～60℃
Ubushushu obugciniwe
Ukufuma okuhambelanayo45%～75% RH		86～106kpa
Uxinzelelo lwe-atmospheric	Ukukhanya kwendalo okanye ukukhanya kwefluorescent 200±50LX
Ukukhanya kwendalo (ukusetyenziswa)
Izinto zeMveliso & neSimbo soMbalaAluminiyam
iqokobhe imathiriyeli
Imathiriyeli yePlastikiABS/---■emhlophe □ emnyama		ABS
Izinto zamaqhosha	FR4
Izinto zePCB	Ugqithiso:BK2452Umamkeli: BK2451
Itshiphu	2.4G
Ugqithiso lolawulo olukude	Iphepha elilandelayo
Itheyibhile yekhowudi yesidlulisi solawulo olukude	Iphepha elilandelayo

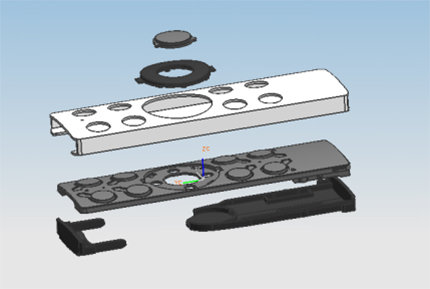

Uyilo lwembonakalo yemveliso	9.835.8120.6
Ubungakanani bemveliso	39g
Ubunzima bemveliso	Iqhosha lebhetri

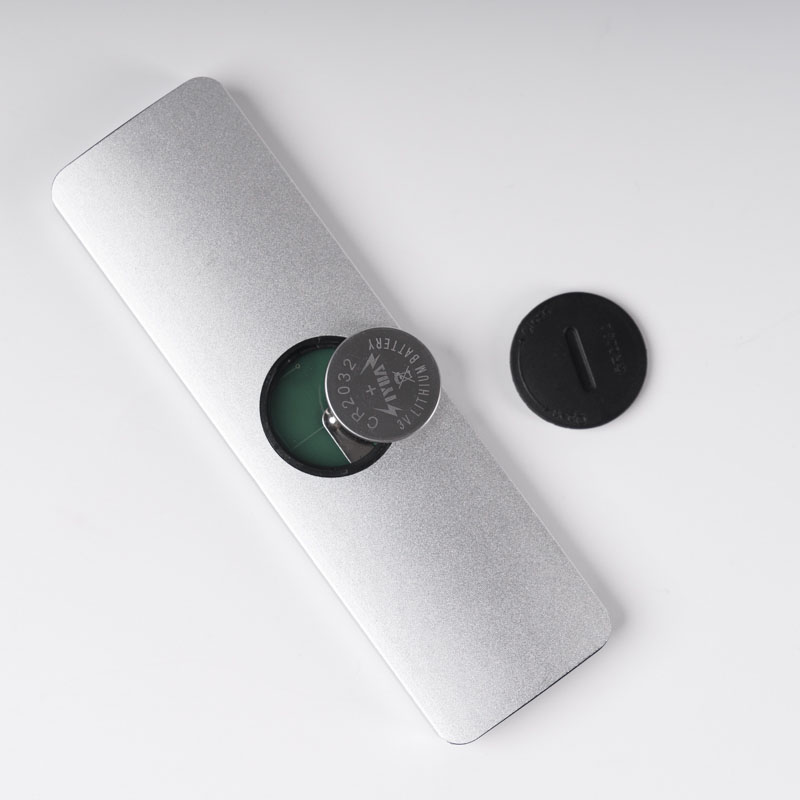

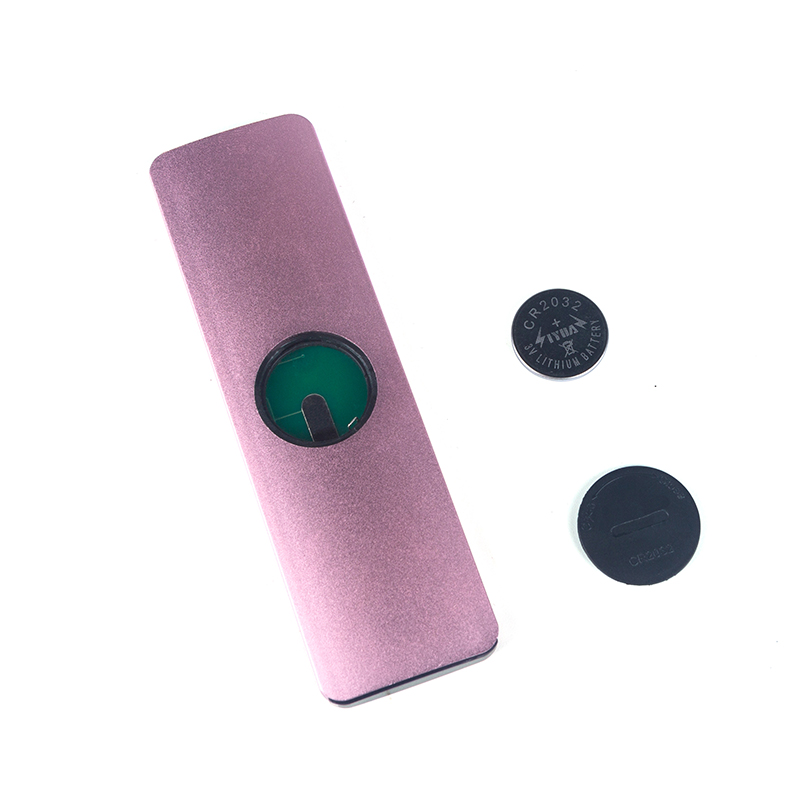

Ibhetri	IQhosha Celi CR2032
Ubume bebhetri
Umgangatho woVavanyo(Ubushushu.=25℃）(Uphawu lweMveliso)I-DC 3V
Ixabiso lombane osebenzayo
Uluhlu lwamandla okusebenzaDC 2.4V-5.0V		＜15mA
Uluhlu olusebenzayo lwangoku	≤5uA
Yima ngoku	＜30mAV / ixesha
Ukusasaza amandla	≥15M (Ulwalathiso lwe-axis; olungathintelwanga, isixhobo esiqhelekileyo sokwamkela)
Umgama wokuqalisa	N / A
I-engile yokuqalisa umkhomba-ndlela	≥8M (2.5V umkhombandlela ohambahambayo; akukho mqobo)
Umgama wothumelo ongaphantsi kombane	≤2mm
Ukuphakama kwamahhala kwezitshixo	180(±20）g
Amandla eqhosha	≥10 Million amaxesha
Iqhosha lokulayisha ubomi	76cm(Umgangatho onzima）/100cm(Umgangatho womthi)
Uvavanyo lokuwisa lwasimahla	6 次 (Kanye kwicala ngalinye）
Amaxesha okuwa asimahla	Isalathiso-ntathu;1.5mm ubukhulu;500-3300 amaxesha / umzuzwana
Uvavanyo lokungcangcazela (30min)	60℃(72h）
Uvavanyo lokugcina ubushushu obuphezulu	-20℃(72h)
Uvavanyo lokugcina ubushushu obuphantsi	40℃ ukufuma okuhambelanayo 90%
Uvavanyo lokufuma rhoqo
(UKUPAKISHA）
Ukupakisha: PE bag(PE-LD)	380PCS/CTN
